Quick Details

  • Condition: New
  • Application: For recycling plastic waste
  • Automatic Grade: Automatic
  • Production Capacity: 80~ 1000 kg/hr
  • Place of Origin: Taiwan
  • Brand Name: Polystar
  • Model Number: HNT-V
  • Voltage: customized
  • Power(W): customized
  • Dimension(L*W*H): n/a
  • Weight: n/a
  • Certification: CE
  • Warranty: 1 year on all mechanical parts and 6 months on all electrical devices
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product: Plastic pellets/granules/resins
  • Material Processed: Film
  • Material shape: Films, bags, sheet, net, foam, tapes
  • Material shape 2: raffia, regrind, flakes, granules, scraps
  • Material type: HDPE, LDPE, LLDPE, PP BOPP, EPS, PU
  • Output: 100kg~1000kg per hour
  • Machine components: conveyor belt, shredder, extruder, pelletizing
  • Machine components 2: Pellet cooling and drying unit and storage tank
  • Delivery: 30-50 days
  • After-sales service provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details Loaded on wooden pallet, covered by plastic films





  Plastic Recycling Technology from Taiwan


Recycling Material

  PE/PP Film Roll                   Bags                     Film Scraps               Bubble Film              Film Sheet

           Raffia                Nonwoven Flakes            Strech Film               Garbage Bag               Washed Flakes







  Taiwan plastic recycling machine

Post-Industrial Waste


Blown and Cast Film Producers

Raffia & WovenRigid Regrind

HDPE, LDPE, PP, shirnk, stretch film,

BOPP,CPP, OPP leftover waste of edge

trim from blown film in the format of

scraps(T-shirt bags cut-offs from bag

making processes), complete film rolls and sheet can be eddiciently recycled in a simple process. The high quality, uniformed sized recycled pellets are almost like virgin material which can be put directly back into the film production line.

 In-house waste generated from the production of PP woven bags, non-woven, jumbo bags, PP raffia PP woveb sacks and tapes. The recycled PP pellets can be reused (100%) for production, in most cases in circular weaving looms and tapelines.

 Pre-crushed, heavy rigid regrind scaps such as bottles, pipes, containers and lumps in the form of granules. Applicable materials are mailny HDPE, LDPE, PP, PA, PC, PU, ABS and others









Simple in Design, Flexible in Operation


    - One-step direct technology with cutting + extrusion +pelletizing

   - Very easy to install, operate and perform maintenance

   - Fast change between different types of material

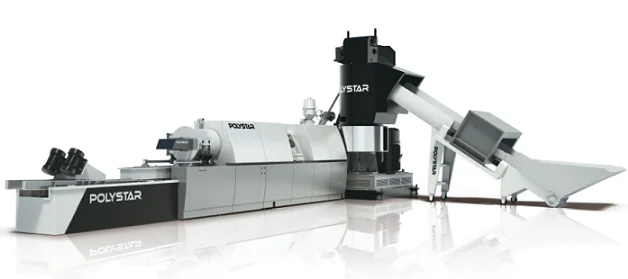

POLYSTAR’s Repro-Flex is designed for the reprocessing of polyethylene (HDPE, LDPE, LLDPE) and PP polypropylene flexible packaging material, printed and non-printed. This cutter integrated pelletizing system eliminates the need of pre-cutting the material, requires less space and energy consumption while producing high quality plastic pellets at a highly productive rate.



How Repro-Flex Recycling Machine Works


1 & 2 - Feeding

Feeding of scraps is easy, flexible and autimatically controlled.

Film-on0rolls can be fed with nip roller feeder.



3- Cutting & Compacting

Very fast and stable feeding from the compactor directly into the extruder



4- Additive feeder

Color master batch and CaCO3 compunds (in pellet form) can be added during the recycling process



5- Double degassing

Able to process both printed and non-printed material



6- Filtration

Filter with dual channel system for non-stop operation and reduces machine down time







7- Die face pelletizing

Produces high quality plastic pellets for reprocessing















POLYSTAR Website: www.polystarco.com
