Auto shopping and bottom sealing bag making machine manufacture Taiwan

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Sealing Machine
Bag Type:
T-shirt Bag
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
Polystar
Model Number:
BS
Voltage:
Customized
Weight:
Customized
Certification:
CE
Computerized:
Yes
Material:
Plastic
Dimension(L*W*H):
Customized
Power(W):
Customized
PE:
Bags
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year on mechanical parts and 6 months on electrical parts
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Covered with plastic cover, loaded on plastic pallets
Port
Taiwan
Lead Time :
75 days














Automatic t-shirt bag making machine











machine features.jpg





Automatic t-shirt bag making machine
Polystar Model Name: BS



1. Servo motor for controlling bag length is equipped on Automatic t-shirt bag making machine. Servo motor brand is Yaskawa, Japan.

2. Inverter for controlling speed, reducing electrical consumption, and easy operation is equipped on Automatic t-shirt bag making machine.

3. Automatic t-shirt bag making machine has Cold knife cutting design.

4. 4 sets of sealing bars is equipped on Automatic t-shirt bag making machine. 2 sets with single sealing line for making bottom sealed bag (top open bag), the other 2 sets with 2 sealing lines (to seal the bag on top&bottom) for making semi-product of t-shirt bag.

5. The sealing bar of Automatic t-shirt bag making machine can be easily changed for shopping bags and plain bags.

6. The cutting blades of Automatic t-shirt bag making machine are all SKH3 material.

7. The photocell (SICK) for accurate registration of film printing points is installed on Automatic t-shirt bag making machine.

8. Automatic t-shirt bag making machine has continuously working system, adopted with auto stopping alarm device.

9. Automatic t-shirt bag making machine will automatically stop when the film roll is empty.



















product.jpgAutomatic t-shirt bag making machine

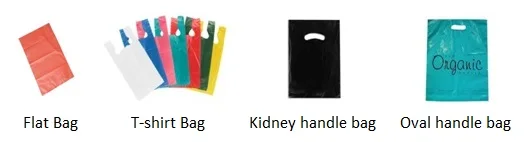

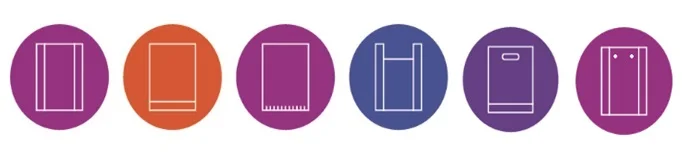

Available for making--



1. Bottom sealing bag



2. Bottom sealing bags with side gusseting



3. Shopping bag(T-shirt bag)



4. Gauge plain and printed bag



5. Bottom angle sealing bag



6. Kidney/Oval shape punched bag



7. Calendar bag













select your machine.jpgAutomatic t-shirt bag making machine


Model

Bag Width

Lane

Bag Length

Speed

Power

Consumption

BS-32-4

750 mm

1

1000 mm

30~100 pcs/min

8 kw



BS-42-4

420 mm

4



1000 mm




30~100 pcs/min




9 kw


900 mm

2

1000 mm1











optional devices.jpgAutomatic t-shirt bag making machine

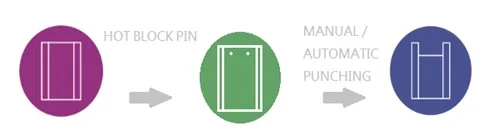

1. Punching device (for making T-shirt bags)

- In-line automatic punching device for making T-shirt bags

-Off-line manual punching device for making T-shirt bags




Punching device.jpg

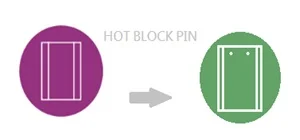

2. Hot block pin

To block each pile of bags together




Hot block pin.jpg

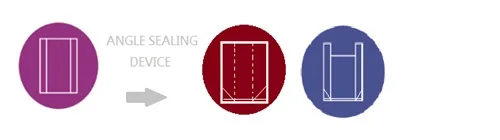

3. Angle sealing device



Angle sealing device.jpg

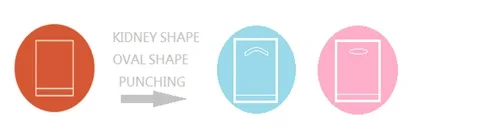

4. 'Kidney shape' or ' Oval shape' punching device




\'Kidney shape' or ' Oval shape' punching device.jpg
















why polystar.jpgAutomatic t-shirt bag making machine






why polystar.jpg









  Automatic t-shirt bag making machine from Taiwan

  Find more info on Automatic t-shirt bag making machine: www.polystarco.com
