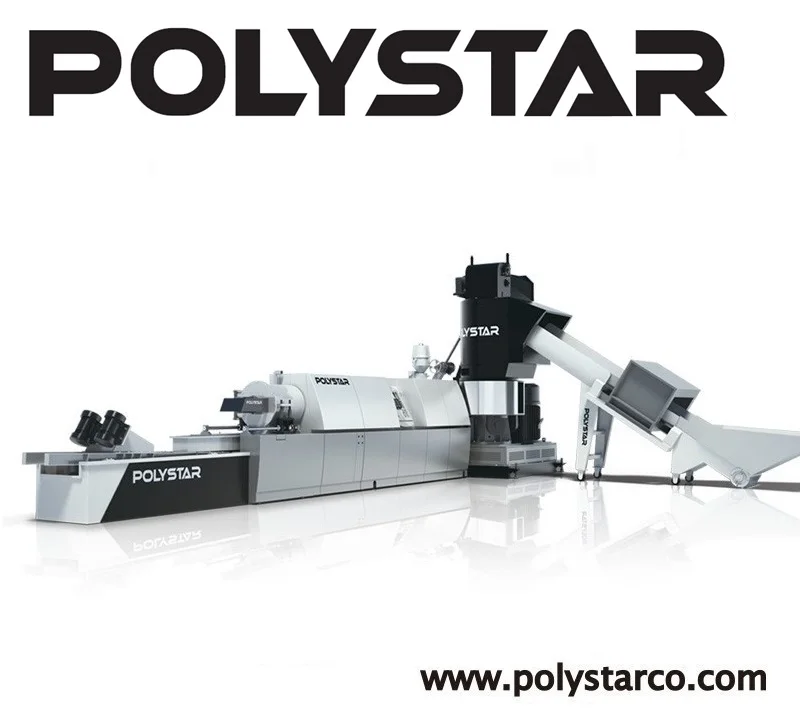

Metalized Film Recycling Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $500,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
HNT-V
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 180 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Applicable Industries:
Food & Beverage Factory, Metalized Film Producer
Key Selling Points:
Easy to Operate
Production Capacity (kg/h):
1000
Name:
Recycling Machine
Type:
Plastic Recycling Granulating
Material Processed:
Metalized Film
Final product:
Pellets
Motor:
Siemens Brand
Output:
100~1000 Kg/Hr
Inverter:
Fuji
Contactor:
Schneider Brand
Color:
Standard
Suitable material:
Plastic Film
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Loaded on wooden pallet, covered by plastic films
Port
Kaohsiung
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 180 To be negotiated
Video Description
Product Description

Product Application

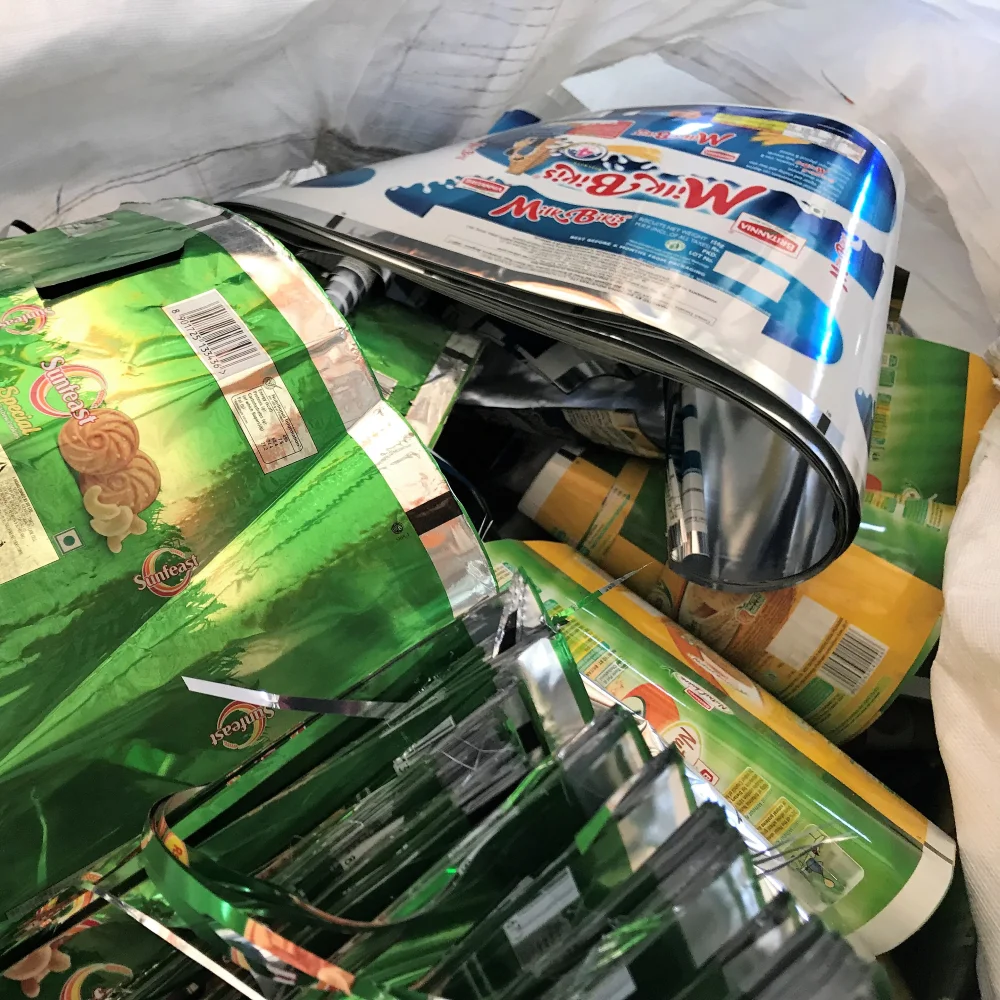

In addition to in-house film waste, Metalized film recycling machine system is also able to process washed flakes, scraps, and regrind. Metalized film recycling machine is highly recommended for packaging film producers as well as the woven industry of PP woven bags, jumbo bags, tapes, and yarns. Other types of materials such as PS sheet, PE and PS foam, PE net, EVA, PP mixed with PU are also applicable to this Metalized film recycling machine.



Specifications for Metalized Film Recycling Machine

Model
Output (kg/hr)
HNT-65V

80~120 kg/hr
HNT-85V
150~250 kg/hr
HNT-100V

300~400 kg/hr
HNT-120V
400~600 kg/hr
HNT-150V
700~800 kg/hr
HNT-165V
850~1000 kg/hr
HNT-180V
1000~1200 kg/hr
Mani Features

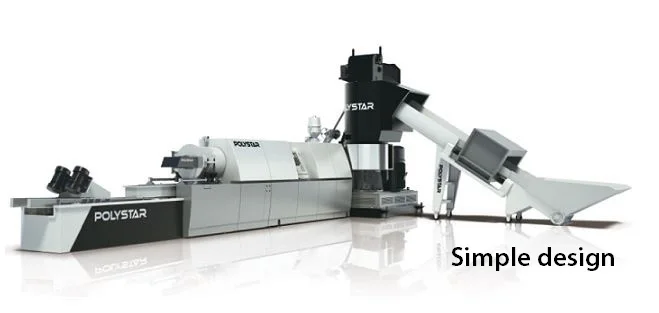

One-Step, All-in-One direct recycling.

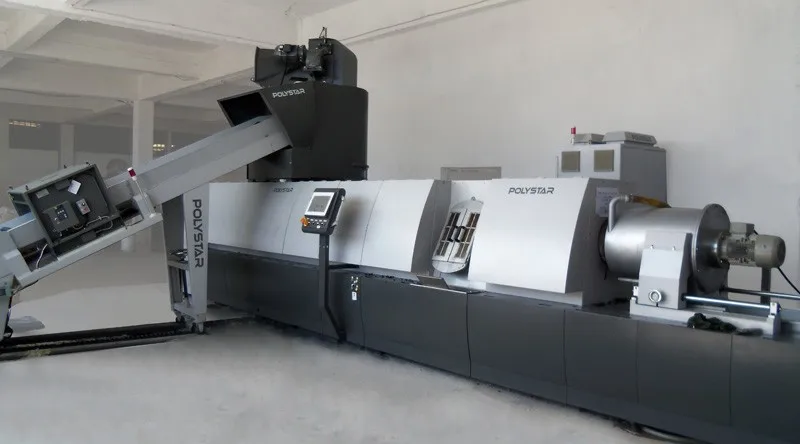

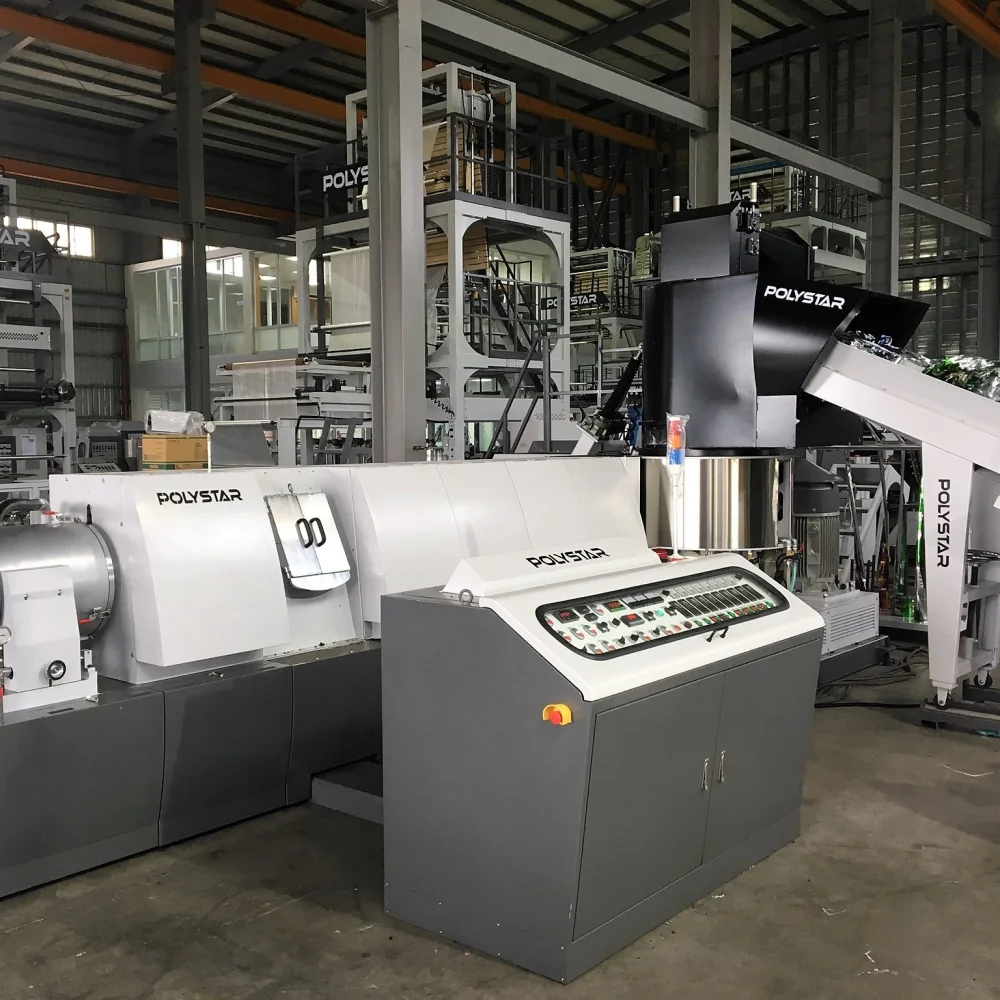

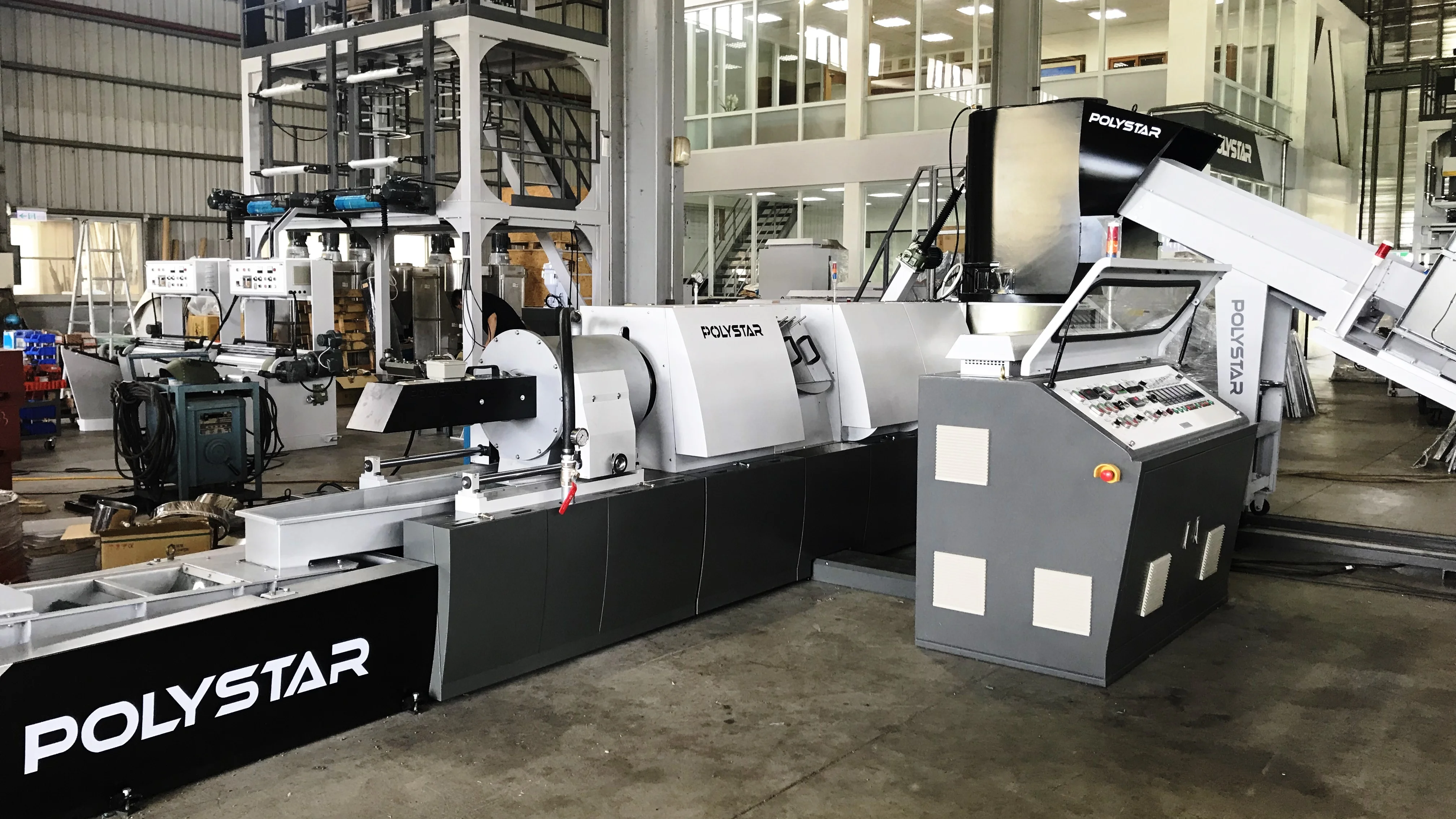

The Repro-Flex Metalized film recycling machine combines cutting, extrusion, and pelletizing into one compact and efficient line. Comparing to the conventional Metalized film recycling machine, this integrated system does not require a separate crusher, and therefore, eliminates the problem of inconsistent feeding.

Easy material feeding without the need for

pre-cutting.

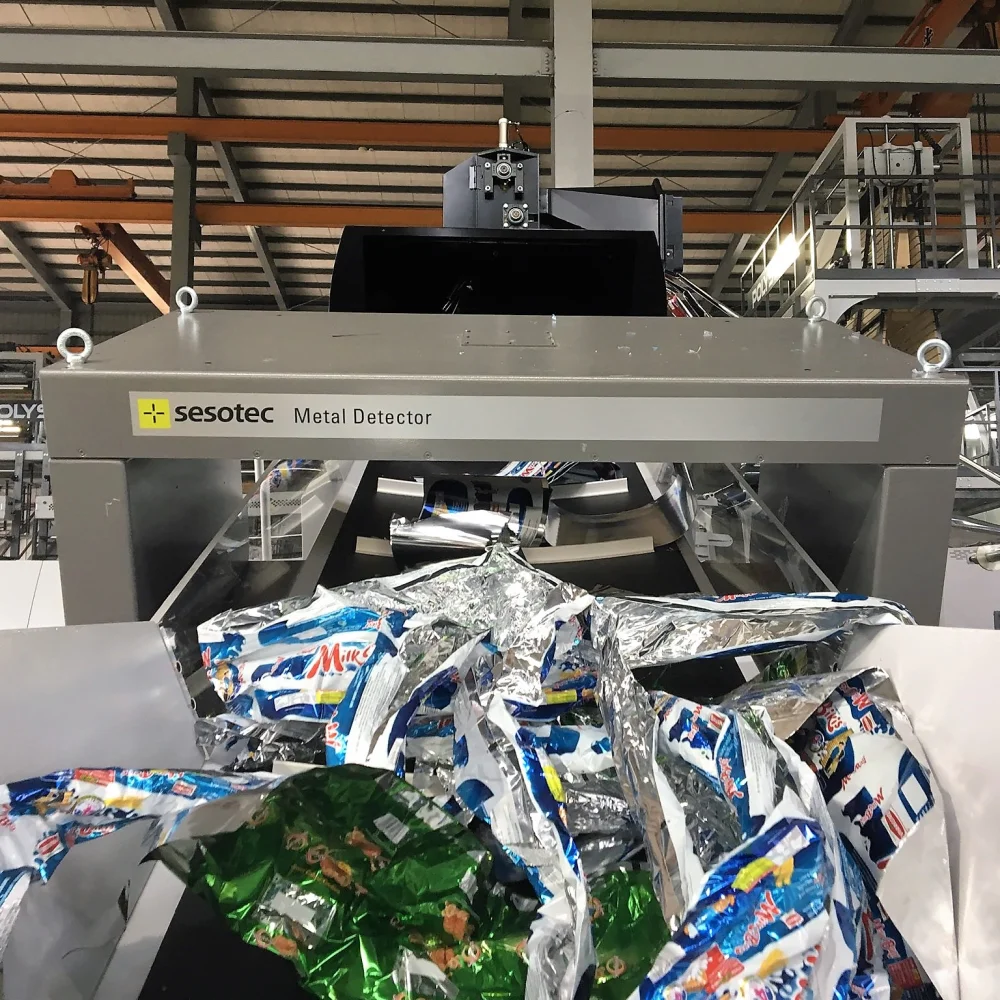

The waste material enters the Metalized film recycling machine from the belt conveyor and nips roll feeder at the same time. The feeding of Metalized film recycling machine is controlled automatically. The cutter compactor of Metalized film recycling machine cuts dries and compacts the material into a semi-molten condition, which is optimal for the extrusion process that follows.

Higher output capacity.

The integration system ensures high-speed and stable feeding of Metalized film recycling machine. This results in a much higher production output comparing to other types of Metalized film recycling machine in the market.

Higher pellet quality.

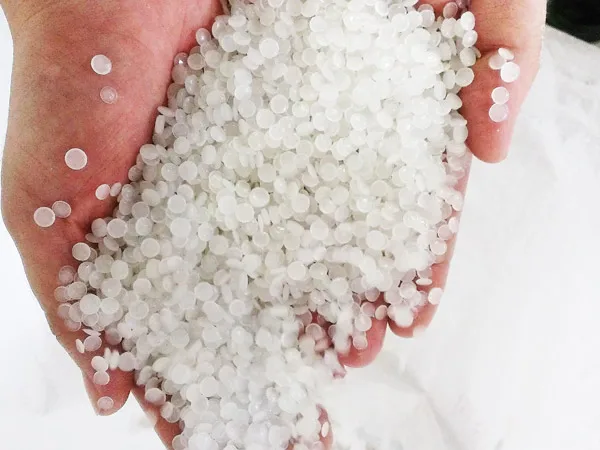

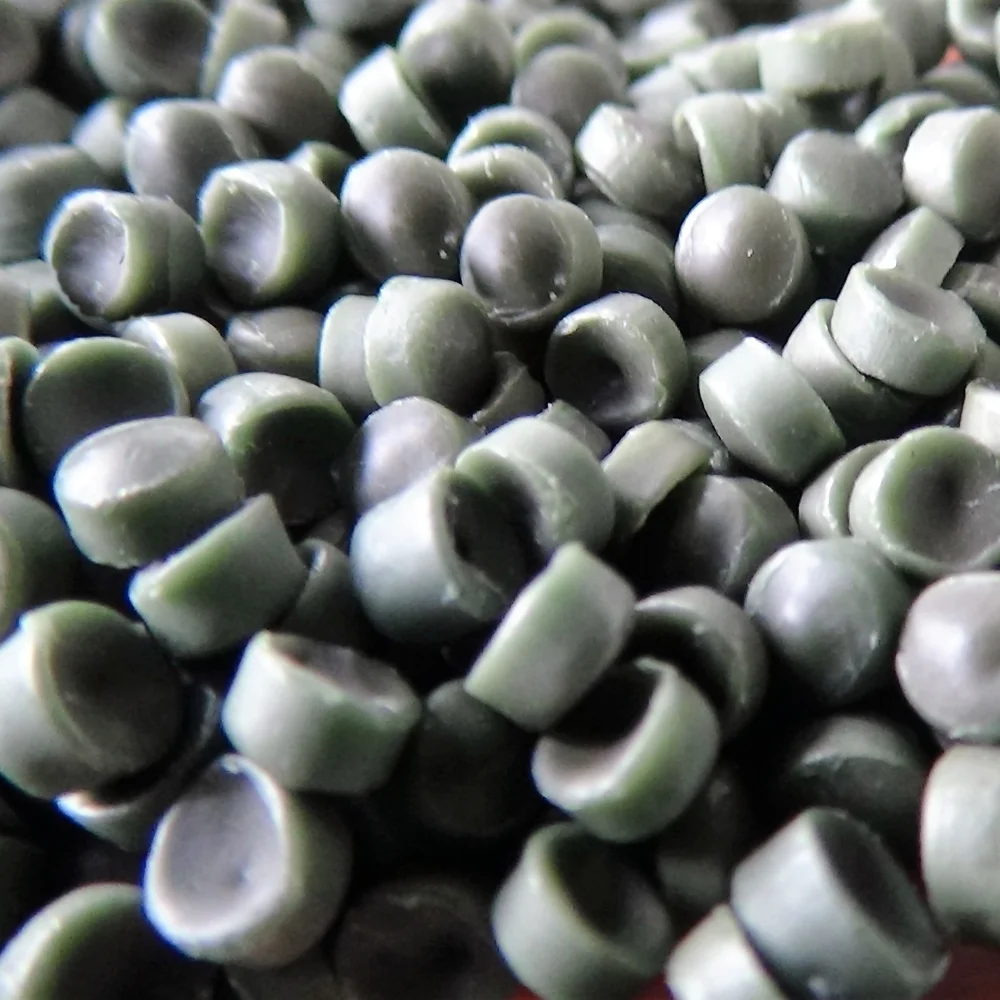

The stable material feeding together with the hot die face pelletizer produces round-shaped, uniformed size pellets that are higher in value and optimal for reproduction.

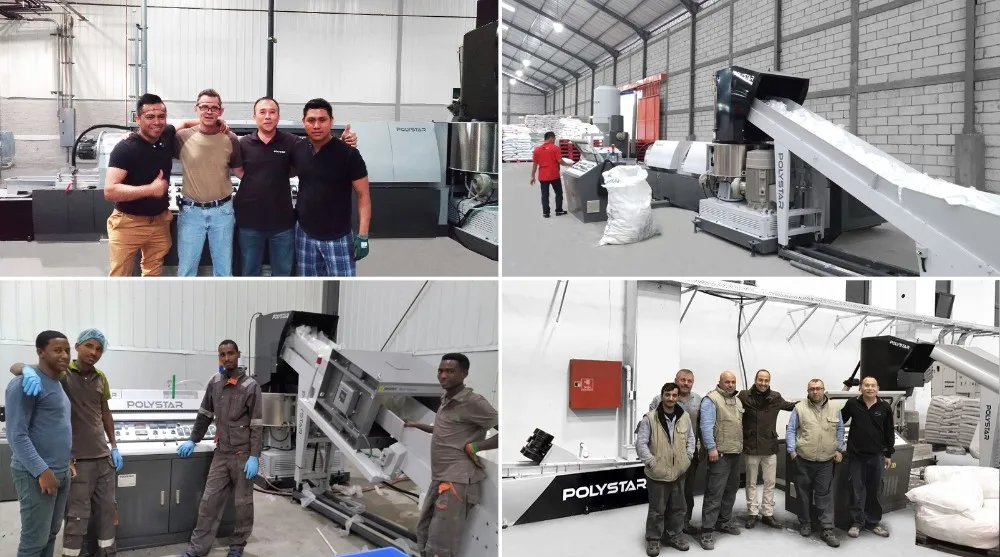

Worldwide

BOPP and laminated film producer

Country: Canada

BOPP and stretch film scraps and film on-roll can be turned into high-quality pellets for reprocessing. Polystar's advanced cutter-compactor system can process material that is typically more difficult to recycle due to its special property, such as printed BOPP and stretch film that one normally faces the problem with the traditional recycling systems.

Packaging Film Producer of HDPE, LDPE and PP film

Country: Indonesia
Leftover waste of edge trim from blown film and cast film in the format of scraps (T-shirt bags cut-offs from bag making and punching processes), complete film rolls and sheets can be efficiently recycled in a simple process. The high quality, uniformed sized recycled pellets are almost like virgin material which can be put directly back into the film production line.

Washed LDPE and HDPE film flakes

Country: Slovakia
The dirty material is collected from city waste. After a quick sorting, the post-consumer waste first goes through the washing and drying lines.


The washed and dried film flakes with 3~5% water moisture content is then fed directly into the POLYSTAR HNT-85V machine for further degassing, filtration and pelletizing.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

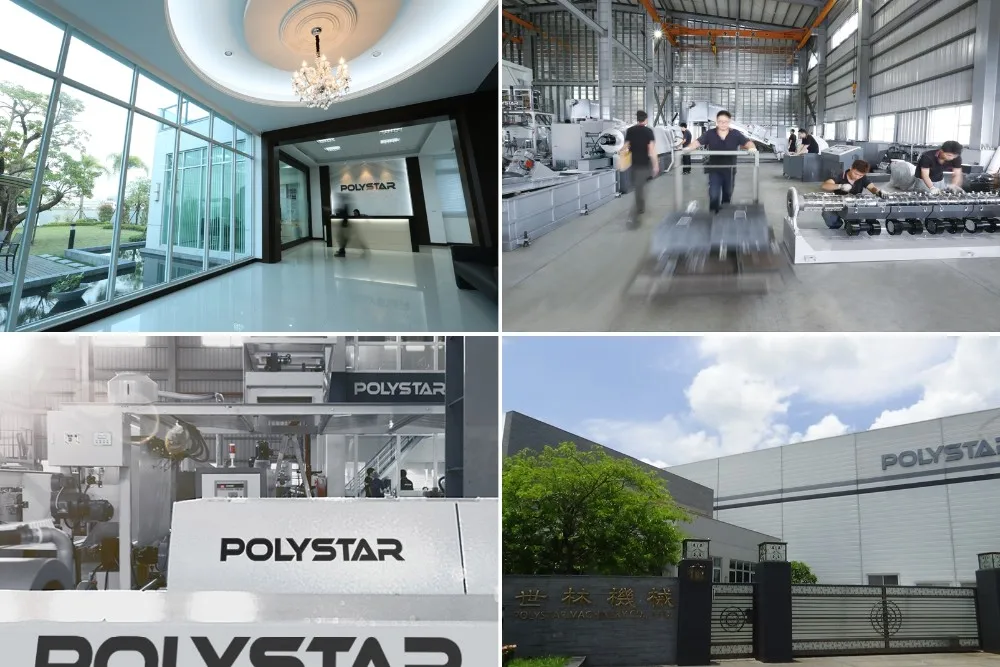

* View our Factory.

After-Sales Service

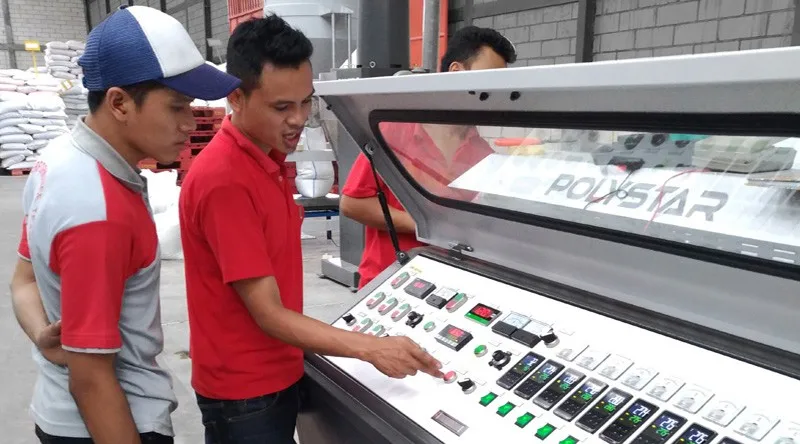

* Training how to use the machine.

* Engineers available to service machinery overseas.

* Support machine spare parts.

* Trouble-shooting.

Packing & Delivery

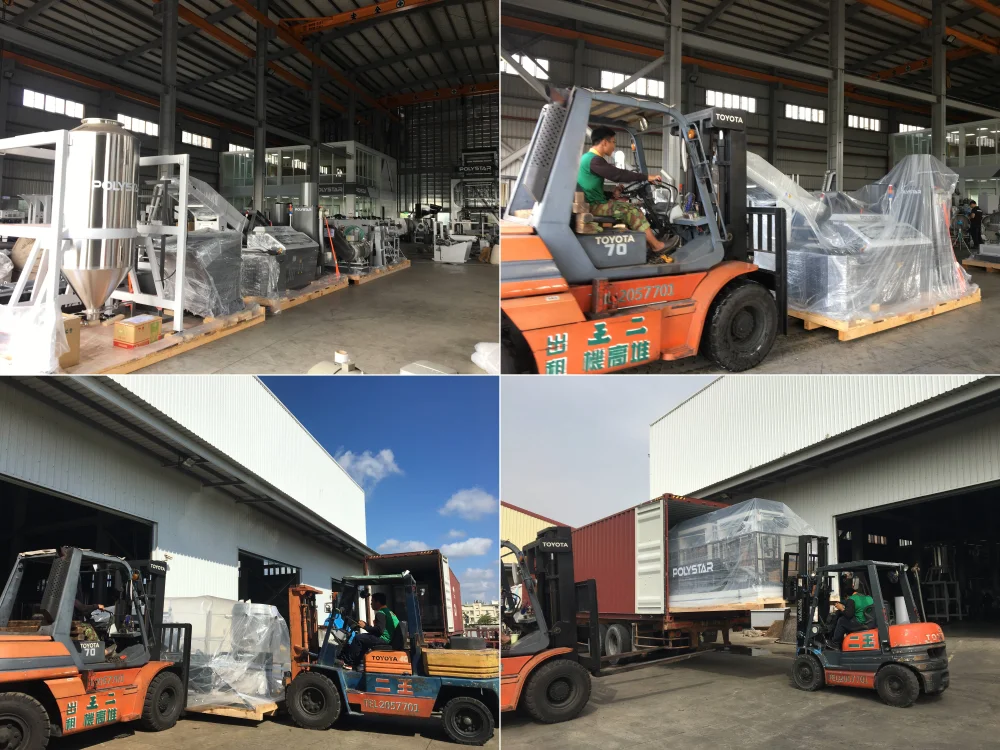

Packaging



Packaging Details
By wooden pallet covered by plastic film.
The actual container requirement may vary depending on the final machine configuration including or excluding the optional devices or modification required by the buyer or seller.
