Hard Plastic Regrind Recycling Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $500,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
TR-V
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Place of Origin:
Taiwan, China
Brand Name:
Polystar
Voltage:
customized
Certification:
CE
Application:
recycle hard plastic regrind
Automatic Grade:
Automatic
Dimension(L*W*H):
N/A
Applicable Industries:
Recycler
Key Selling Points:
Easy to Operate
Plastic Type:
HDPE, PP, ABS, PS, HIPS,PC
Material Processed:
Film, Granules, Flakes, Scrap, Regrind...
Production Capacity:
100~1200 kg/hr
Power(W):
customized
Weight:
N/A
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
Loaded into wooden pallet, covered by plastic films
Port
Any port in Taiwan
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Video Description
2018 new LOGO
Hard Plastic Regrind Recycling MachineTR





TR



  • Polystar model number: TR-V (Hard Plastic Regrind Recycling Machine)
          - Product: Plastic pellets/granules/resins
          - Feeding: Screw conveyor, belt conveyor and hopper feeding
          - Extruder: Single screw, one stage extrusion
          - Vent: Double vented degassing, single vented or without vent (customized)
          - Cutting type: Hot die face (water ring) pelletizing
          - Cooling type: Water cooled

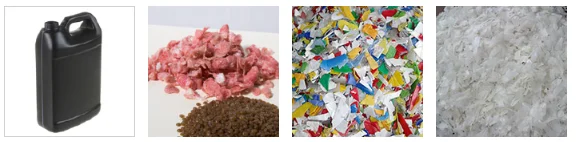

 Material type of Hard Plastic Regrind Recycling Machine
   Hard Plastic Regrind           Washed Material                   Granules                  HDPE-milk-bottles
  • Material shape of  Plastic Recycling Machine  (pre-crushed)
          - Films         - Foam         - Regrind        - Scraps         - Net             - Bags        - Tapes
          - Flakes       - Chips         - Sheet            - Raffia           - Granules   - Edge trimmed

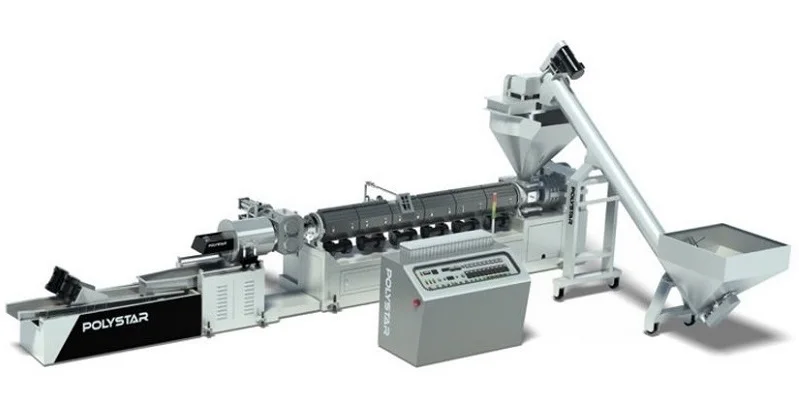

Hard Plastic Regrind Recycling Machine
The Repro-Direct model is a universal recycling pelletizing machine suitable for pre-crushed, heavy rigid regrind scraps such as bottles, pipes, containers and lumps in the form of granules. Applicable materials are mainly HDPE, LDPE, PP, PA, PC, PU, PBU, ABS and others.material 1
It can also process light-weighted soft packaging material such as pre-crushed film flakes, PP raffia, PE/PP woven, PE foam and many others with the addition of a force feeder on the feeding hopper.
The feeding speed is controlled and adjusted automatically for different types of material shape and weight to ensure stable feeding and output production. When processing rigid regrind (granule), the force-feeding mechanism can be switched off.

Machine Advantage:

In the Repro-Direct, the material is fed into the hopper directly without the need for pre-heating before extrusion. When processing rigid regrind or compressed washed flakes (processed by a squeezer dryer), this system ensures a faster and easier machine starting and stopping process comparing to other systems (for example, a machine with an integrated cutter compactor which requires pre-heating of the cutter compactor before machine start).

From a hopper feeder, the rigid regrind (or film flakes) is transported directly into the extruder by a screw conveyor (or a belt feeder) without being pre-cutting or compacted. The rate of the feeding is controlled automatically based on the load of the extruder motor (ampere meter). By this method, the system can prevent over or under feeding of material.



Flexible add-ons and customization:

  • Screw conveyor or belt conveyor can be added to facilitate material feeding
  • A large anti-bridging storage tank can be added at the feeding section for storing large-volume waste. The constantly turning rotors can prevent flakes from bridging inside the tank. Positioned on top of the feeder screw, the anti-bridging silo provides continuous supply of flakes with a precisely controlled feeding mechanism
  • A crusher can be added for pre-crushing the material before entering the extruder.
  • Unvented, single or double degassing can be customized depending on material type and condition
  • Vacuum degassing system and two-channel filter can be added to the machine
  • Water ring die face cutting or strand die (spaghetti type) pelletizers are available depending on preference
  • A metal-detector can be added onto the conveyor belt for additional protection

 Why Polystar?



Over 100 countries, 2000 machines, growing numbers of satisfied customers.

We provide the customer not only the machines but also the excellent service.

 service-2







worldwide







Work with POLYSTAR

An experienced market leader in the recycling field, especially for the recycling of packaging film.

  • More than 1,700 Polystar plastic recycling machines have been installed worldwide since 1988
  • Proven success and positive feedback from satisfied customers in 103 countries
  • Flexible, personalized machine design to meet your specific requirement and factory layout
  • Top quality components used for the machines: Energy saving and high performance motors
  • Cost-effective machine: Lower investment cost for a high quality and durable machine



Service and Communication

  • Overseas installation service and training are available
  • Machine warranty with in-time spare parts delivery
  • Fast online trouble shooting



successful project



QR

Hard Plastic Regrind Recycling Machine

Find more info on our website: www.polystarco.com
